Stock Maintenance Sequence Diagram Actor Classes


To create a sequence diagram for use case flow of events add object messages respoinsiblites.

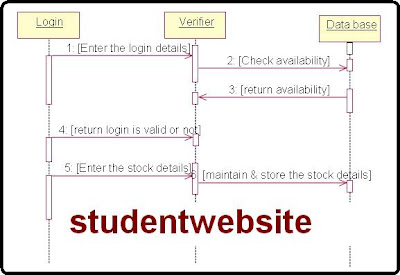

PROCEDURE:See the Basic procedure for draw the sequence diagramIt has the three module login verifier and Database with these three module it has six stage.First stage enter the login detail then check the availability with database then return the availability return to the logging module whether enter login data is correct or wrong in the fifth stage enter the stock details final one maintain the process and stock details between verifier and database.

Thus the different classes have been analyzed Rational Rose Software Diagram CS1403- CASE TOOLS SOFTWARE COMPONENT LAB
