3Dimensional Projection Front Top Side view images in c Visualize

Aim
To Draw and visualize 3D projection Fron view top view and side view using c program 3 Dimensional Projection in C program CS1355-Graphics & Multimedia Lab projections of 3D images.
Algorithm
Start the program 3D projection Images
Using for loop get the no of corrdiante of the 3D view
Using line funtion in graphics we draw the projection
Front view is draw by the following code
if(i!=fs-1)
line(x[i]+some constang value,y[i],x[i+1]+some constant value,y[i+1]);
else
line(x[i]+some constant value,y[i],x[0]+some constant value,y[0]);
in For loop
like that the other top view and side view is drawn by the line function
Finally terminate the 3 Dimensional image view in Front view,Top view and side view

Source code in C program for three dimensional Projection visualize projections of 3D images
#include <stdio.h>
#include <stdlib.h>
#include<graphics.h>
#include<conio.h>
void draw3d(int fs,int x[20],int y[20],int tx,int ty,int d);
void draw3d(int fs,int x[20],int y[20],int tx,int ty,int d)
{
int i,j,k=0;
for(j=0;j<2;j++)
{
for(i=0;i<fs;i++)
{
if(i!=fs-1)
line(x[i]+tx+k,y[i]+ty-k,x[i+1]+tx+k,y[i+1]+ty-k);
else
line(x[i]+tx+k,y[i]+ty-k,x[0]+tx+k,y[0]+ty-k);
}
k=d;
}
for(i=0;i<fs;i++)
{
line(x[i]+tx,y[i]+ty,x[i]+tx+d,y[i]+ty-d);
}
}

void main()
{
int gd=DETECT,gm;
int x[20],y[20],tx=0,ty=0,i,fs,d;
initgraph(&gd,&gm,"");
printf("No of sides (front view only) : ");
scanf("%d",&fs);
printf("Co-ordinates : ");
for(i=0;i<fs;i++)
{
printf("(x%d,y%d)",i,i);
scanf("%d%d",&x[i],&y[i]);
}
printf("Depth :");
scanf("%d",&d);
draw3d(fs,x,y,tx,ty,d);
getch();//front view
setcolor(14);
for(i=0;i<fs;i++)
{
if(i!=fs-1)
line(x[i]+200,y[i],x[i+1]+200,y[i+1]);
else
line(x[i]+200,y[i],x[0]+200,y[0]);
}
getch();//top view
for(i=0;i<fs-1;i++)
{
line(x[i],300,x[i+1],300);
line(x[i],300+d*2,x[i+1],300+d*2);
line(x[i],300,x[i],300+d*2);
line(x[i+1],300,x[i+1],300+d*2);
}
getch();//side view
for(i=0;i<fs-1;i++)
{
line(10,y[i],10,y[i+1]);
line(10+d*2,y[i],10+d*2,y[i+1]);
line(10,y[i],10+d*2,y[i]);
line(10,y[i+1],10+d*2,y[i+1]);
}
getch();
closegraph();
}

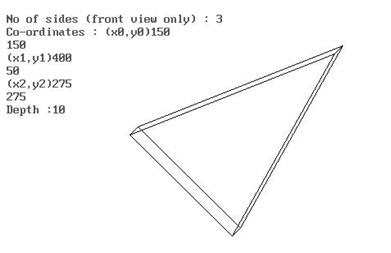

Output three dimensional proection front view top view side view in c program

3Dimensional prjection Front Top Side view images  in c visualize CS1355

3Dimensional prjection Front Top Side view images  in c visualize CS1355
